49
M: +2.00/-0.00

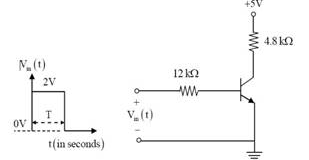

In the figure shown, the npn transistor acts as a switch

For the inputVin(t) as shown in the figure, the transistor switches between the cut-off and saturation regions of operation, when T is large. Assume collector-to-emitter voltage saturation VCE(sat)=0.2V and base-to-emitter voltage VBE=0.7V. The minimum value of the common-base current gain (α) of the transistor for the switching should be _____.

[GATE EC 2017 Set 1]
A
