Consider three 4-variable functions f₁, f₂, and f₃, which are expressed in sum-of-minterms as

f₁ = Σ(0, 2, 5, 8, 14), f₂ = Σ(2, 3, 6, 8, 14, 15), f₃ = Σ (2, 7, 11, 14)

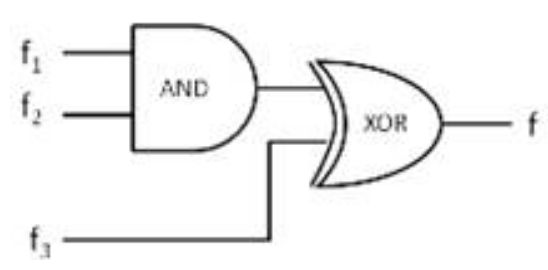

For the following circuit with one AND gate and one XOR gate, the output function f can be expressed as:

[GATE CS 2019]

A Σ (7, 8, 11)

B Σ (2, 7, 8, 11, 14)

C Σ (2, 14)

D Σ (0, 2, 3, 5, 6, 7, 8, 11, 14, 15)
