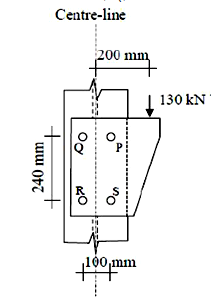

Four bolts P, Q, R and S of equal diameter are used for a bracket subjected to a load of 130 kN as shown in the figure.
force in bolt P is

[GATE CE 2018 Set 2]

A 32.50 kN

B 69.32 kN

C 82.50 kN

D 119.32 kN
