45
M: +2.00/-0.66

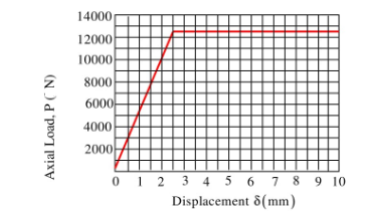

A 2 m long, axially loaded mild steel rod of 8 mm diameter exhibits the load-displacement behaviour as shown in the figure. Assume the yield stress of steel as 250 Mpa. The complementary energy (in N-mm) stored in the bar up to its linear elastic behaviour as shown in the figure.

[GATE CE 2017 Set 2]
A
B
C
D
