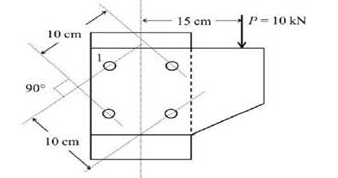

A column is subjected to a load through a bracket as shown in the figure.
The resultant force (in kN, up to one decimal place) in the bolt 1 is_____

[GATE CE 2017 Set 1]

A 3.5

B 6.0

C 2.0

D 4.0
