149

M: +2.00/-0.66

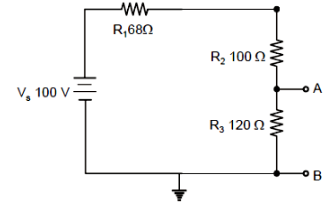

What are the Thevenin’s equivalent voltage V_TH and resistance R_TH between the terminals A and B of the circuit?

[ESE (IES) EE 2017 (Technical)]

A 4.16 V and 120Ω

B 41.67 V and 120Ω

C 4.16 V and 70 Ω

D 41.67 V and 70Ω
