24
M: +2.00/-0.66

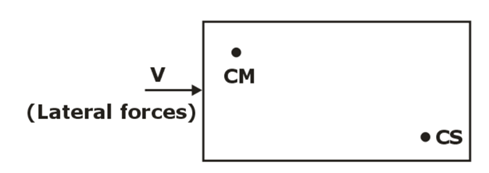

The figure shows the plan view of single-storey masonry shear wall building with rigid roof diaphragm. The traces of locations of the centre of mass (CM) and the centre of stiffness (CS) are as shown. Neglecting accidental eccentricity, the direction of the twisting moment on the diaphragm, for the lateral force direction shown, is


[ESE (IES) CE 2017 Technical]
A
B
C
D
